Heavy Extrusion Press

Since 1962, our company has been studying extrusion press and successively launched nearly 400 sets of extrusion press for aluminum, copper, magnesium, steel and carbon. Extrusion presses offered by our company range from 5MN to 235MN, accounting for 80% of the medium- and large-scale extrusion presses on China's market.

Technical Parameters of Extrusion Press
12.5 MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
12.5 MN extrusion press 12.5MN 16.7 × 8.2 3.8 330 20mm /s Customized
18MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
18MN extrusion press 18MN 14.2 × 9.5 4.5 520 20mm /s Customized
20MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
20MN extrusion press 20MN 17.6 × 10 5.2 590 20mm /s Customized
27.5MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
27.5MN extrusion press 27.5MN 19.3 × 11.5 5.6 765 20mm /s Customized
36MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
36MN extrusion press 36 MN 21.8 × 12 6.6 975 20mm /s Customized
45MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
45MN extrusion press 45 MN 22.5 × 14 6.7 1200 20mm /s Customized
55MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
55MN extrusion press 55 MN 25.2 × 15.2 6.9 1520 20mm /s Customized
75MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
75MN extrusion press 75 MN 31.5 × 16.1 7.4 2080 20mm /s Customized
90MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
90MN extrusion press 90 MN 32.7 × 18.3 7.5 2300 20mm /s Customized
125MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
125MN extrusion press 125 MN 40 × 21 8.5 2300 15mm /s Customized
150MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
150MN extrusion press 150 MN 42 × 22 8.8 3100 15mm /s Customized
175MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
175MN extrusion press 175 MN 43.4 × 24 9 4300 20mm /s Customized

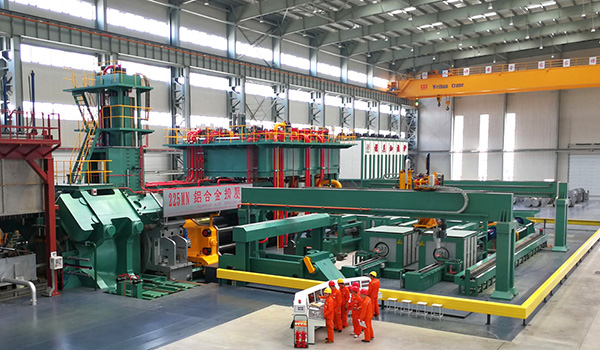

225MN extrusion press
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
225MN extrusion press 225 MN 59.5 × 26 11.2 6200 20mm /s Customized
235MN extrusion pres
Name Nominal Force Occupation area (L×W) (m) Height (m) Power (KW) Working speed (Max. pressure) Handling system, aging Furnace, gas furnace
235MN extrusion press 235 MN 57.4 × 27.1 12.3 4600 10mm /s Customized
Advantages of Heavy Extrusion Press

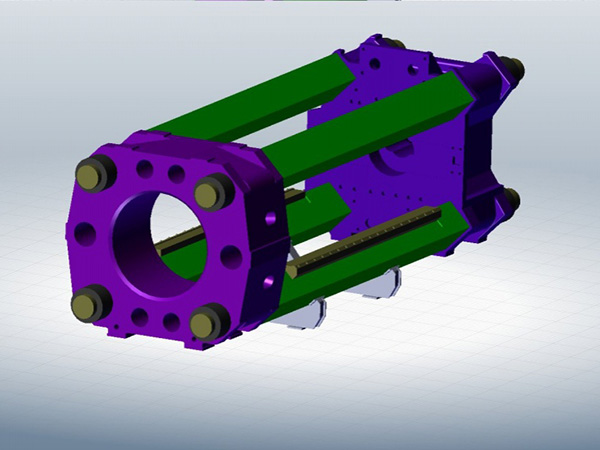

  • The prestressed combination frame increases structural strength and overall stiffness of the extrusion press, thus ensuring the quality of product.

  • Short-stroke structure: frame is much higher stiffness; decreases the consumption of hydraulic oil, increasing the accuracy of speed control and pressure control; cutting the dead cycle time.

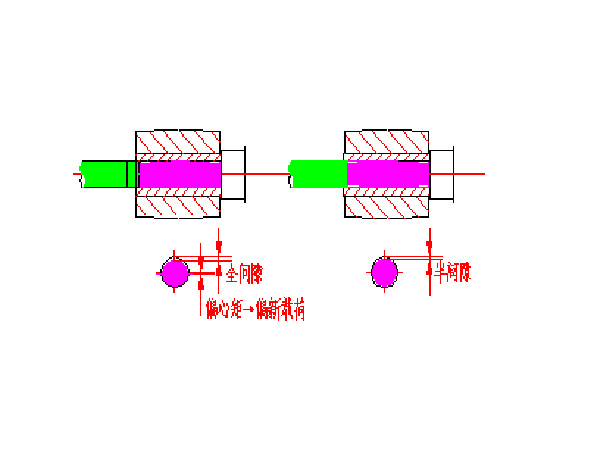

    Front loading system: Billet center is consistent with container center and realizes non-friction loading; Billet is upset symmetrically, leading to great improvement in gas exhausting, avoiding explosion and increasing the extruding product's quality.

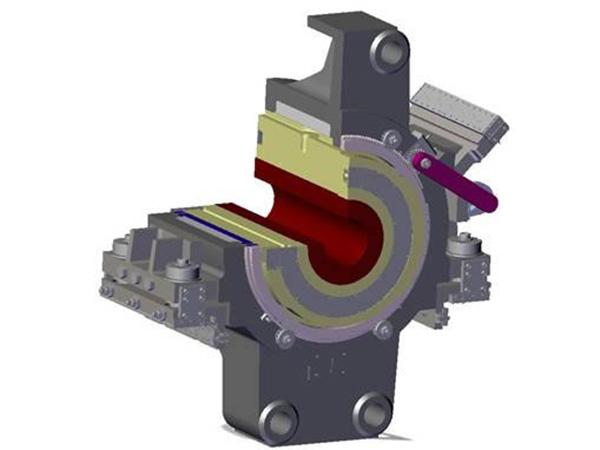

  • Adjustment of container and moving crosshead.

    Horizontal and vertical four-side guiding structure is used for container and moving crosshead. along with a built-in gap adjusting device, for easy, precise and convenient alignment

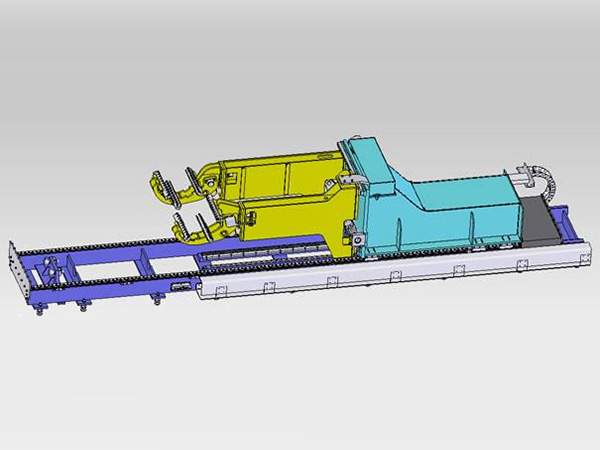

  • High efficient auxiliary machine: The automatic length-measure billet pusher and telescopic self-adapting billet loader both ensure efficient and orderly material supply. the return distance of container and stem can be controlled according to actual billet length maximum reducing the dead cycle time.

    A series of innovative devices are equipped for reducing the tool exchanging time and improving the work efficiency, such as stem fast changing device, container fast changing device, container support cyclinder, die fast changing device and more.

    By using a fixed dummy block, the extrusion press gets rid of the block circulation system and reduces the non-working operation time, thereby cut down the power consumption and increasing the production efficiency. Not only that, the dummy block can be kept at a relatively constant temperature and benefits the billet extrusion.

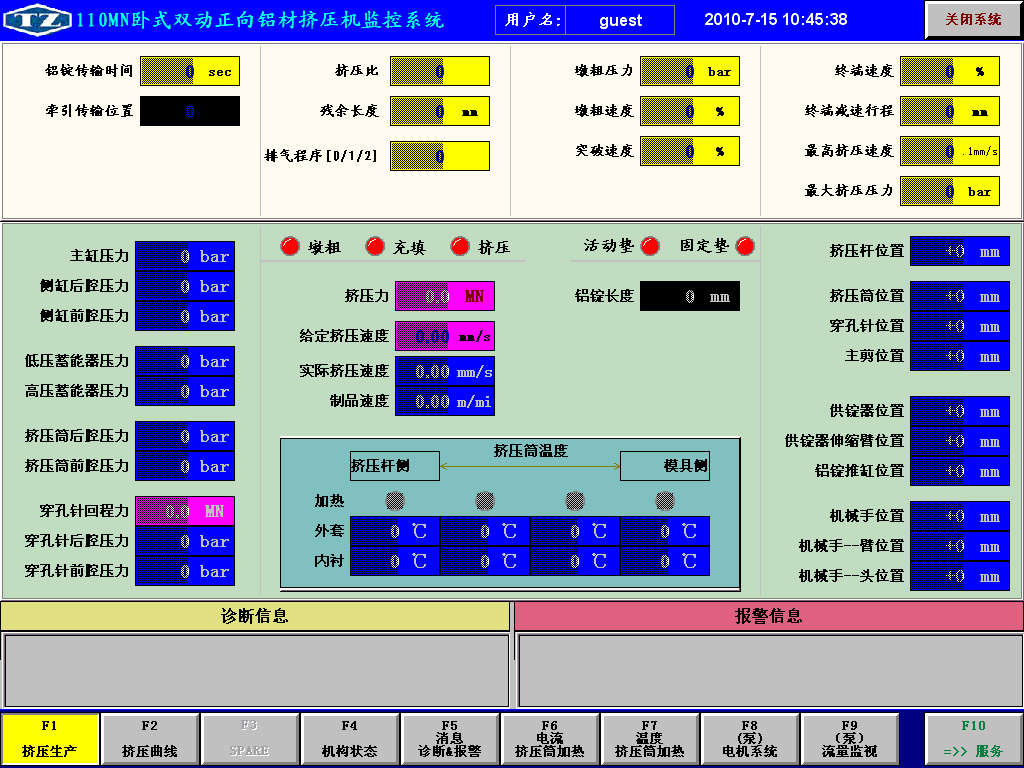

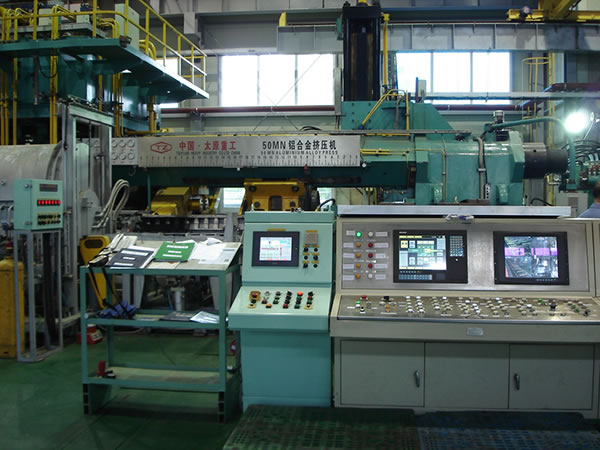

  • The combination of master computer and PLC system realizes dynamic display of component position, pressure, oil temperature, oil level, hydraulic circuit simulation, extrusion curve graph, parameters setting, motor control and extrusion cylinder heating control.

Here are extrusion press examples used by our customers as follows

Aluminum Extrusion Press

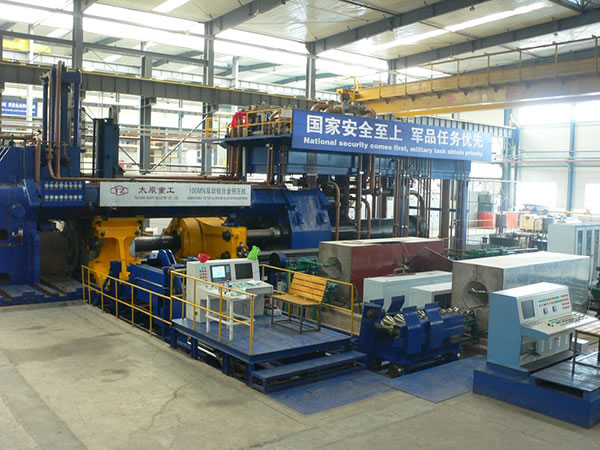

  • 100MN double-acting direct aluminum extrusion press

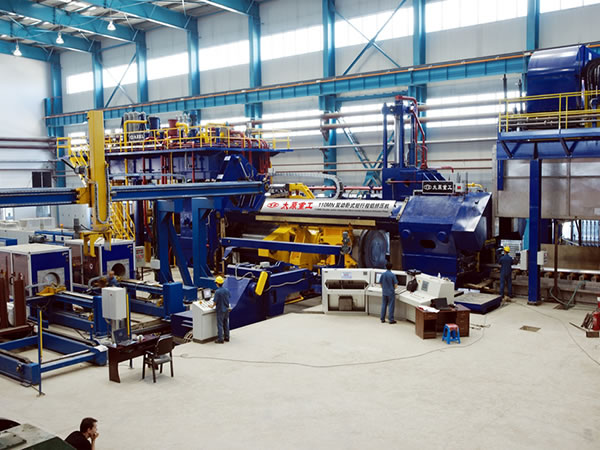

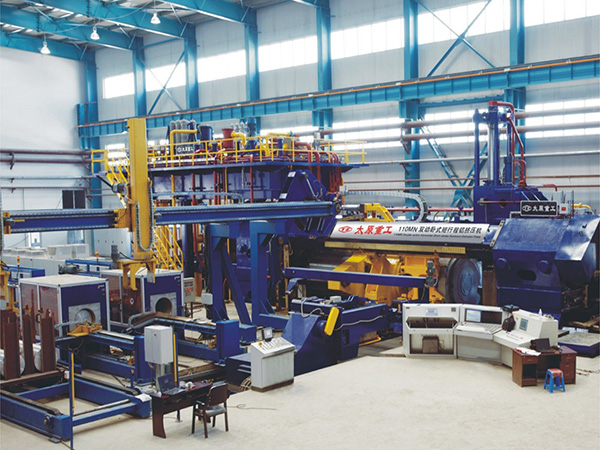

  • 110MN double-acting aluminum extrusion press

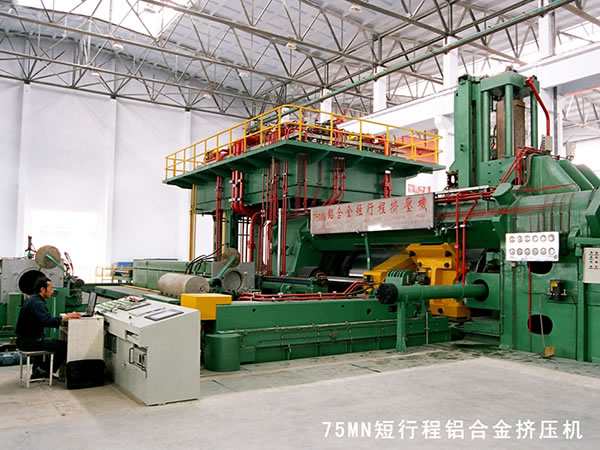

  • 75MN horizontal-type single-acting short-stroke aluminum alloy extrusion press

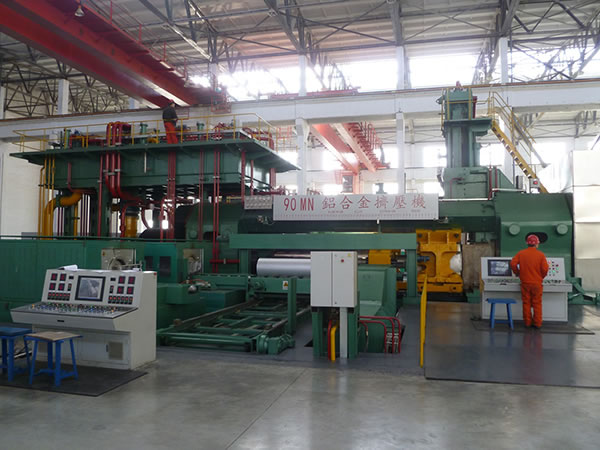

  • 90MN single-acting direct aluminum alloy extrusion press
  • 95MN double-acting direct and indirect aluminum extrusion press

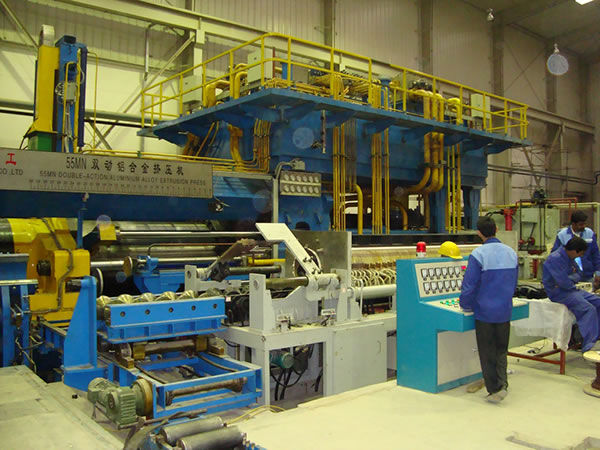

  • 55MN aluminum extrusion press
  • 90MN single-acting direct aluminum extrusion press
  • 55MN aluminum extrusion press
  • 75MN aluminum extrusion press

Copper Extrusion Press

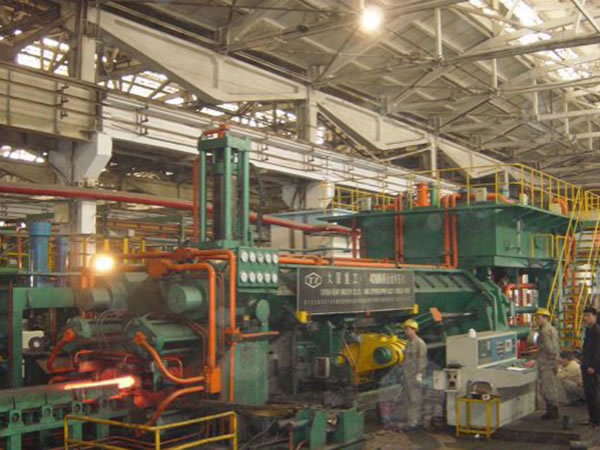

  • 40MN horizontal-type double-acting copper extrusion press

Ferrous Metal Extrusion Press

  • 35MN double-acting titanium alloy extrusion press
  • 63MN steel extrusion press
  • 16MN steel extrusion press

Carbon Extrusion Press

  • 35MN carbon extrusion press
  • 35MN carbon extrusion press

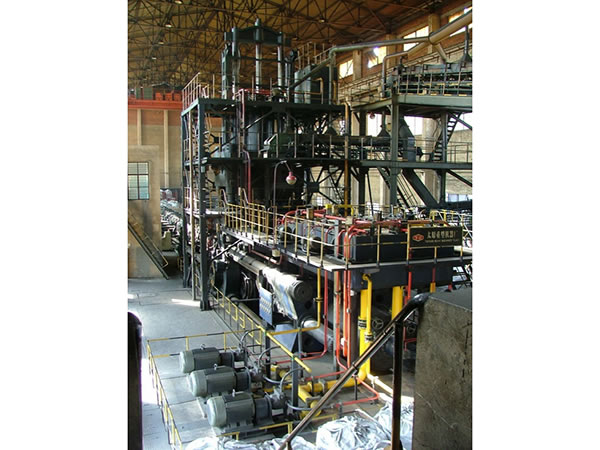

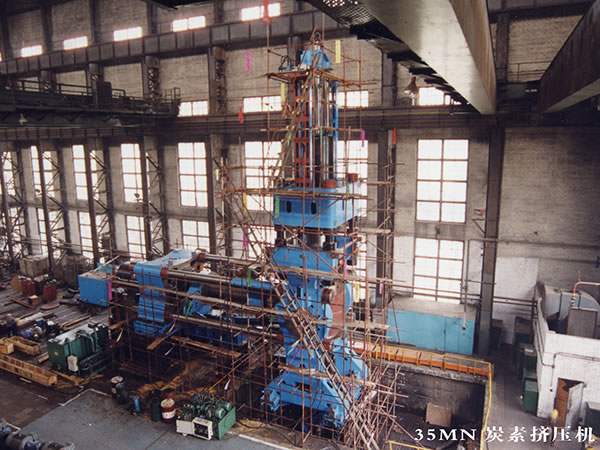

  • 35MN vertical type extrusion press
